120m/M 45mm Fluoroplastic Cable Extruder

Name: 120mM 45mm Fluoroplastic Cable Extruder
Brand: NEWLEAD
Price: 80000 USD

Quality 120m/M 45mm Fluoroplastic Cable Extruder for sale

Brand Name : NEWLEAD

Model Number : 45

Certification : ISO

Place of Origin : CHN

MOQ : 1 set

Price : 80000-10000

Payment Terms : T/T, L/C

Supply Ability : 1 set in 60 days

Delivery Time : 60 days

Packaging Details : wooden pallets

Name : 45mm Advanced Production line of fluoroplastic cable extruder

Usage : High Temperature cable Extruder line

Capacity : 120m/m

Material : FF46

Function : Extruding

Warranty : 12 Months

Power supply : 380V/415V/440V/As customer's requirements

Application : Wire Processing

Contact Now

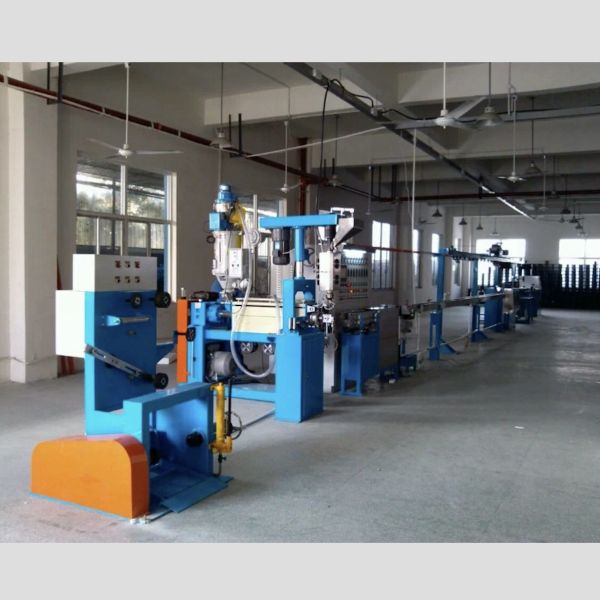

45mm Advanced Production line of fluoroplastic cable extruder

Application scope:

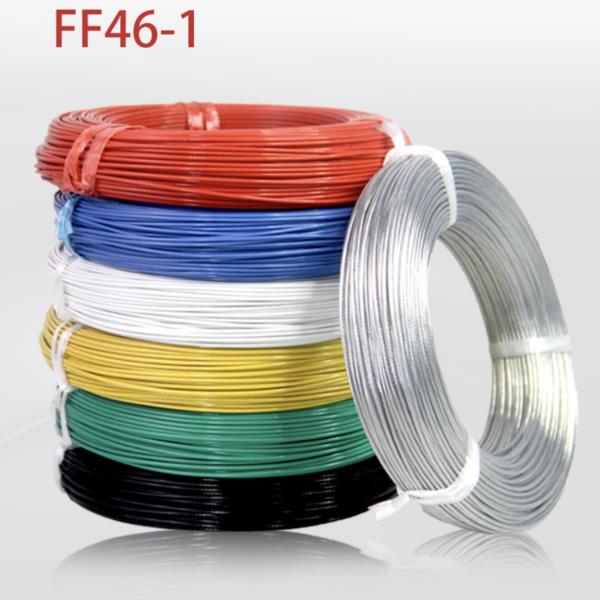

It is suitable for the production of FEP (polyfluoroethylene propylene, also known as F46), PFA (fluorinated alkoxyethylene resin) and ETFE (polytetrafluoroethylene and ethylene copolymer, also known as F40) and other heat-resistant and corrosion-resistant wire insulation and sheath. It is especially suitable for coating cables used in aerospace, nuclear submarine and other special industries.

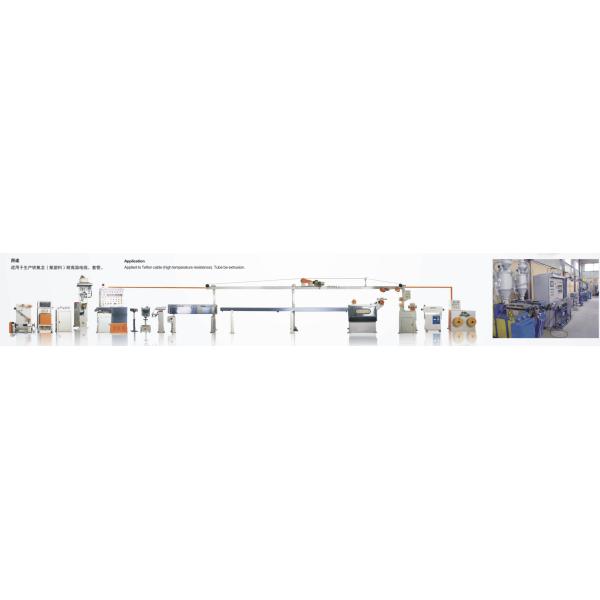

Equipment configuration:

No	Name	QTY
1	PN400-500 motorized payoff	1sets
2	PN800 magnetic powder payoff
3	Straightening table 50mm	1 set
4	Ψ45/25 extruder	1 set
5	Cabinet PLC type∕operating desk	1 set
6	U7 head self-type center	1 set
7	U7 Manual centering crosshead	1 set
8	Primary-secondary moving water trough(2m)	1 set
9	8.5M Main cooling water tank	1 set
10	12m Horizontal type storage accumulator	2 sets
11	Ψ500+500mm Double round capstan tractor	1 set
12	Caterpillar-tractor 500kg	1 set
13	PN400-630Dual take up	1 set
14	PN800 Torque take up	1 set
15	Online diameter control	1 set
16	15kv AC Spark Tester	1 set
17	Strip-injecting machine Φ35*18	1 set
18	Copper wire pre-heat 2250	1 set
19	Free spare parts	1 set
20	Layout 23-25m

General technical specifications:

1. Applicable conductor core wire diameter: Φ 0.2mm - Φ 6.0mm

2. Finished outer diameter: Φ 0.4mm - Φ 8.0mm

3. Minimum insulation thickness: 0.2mm

4. Output: 25kg / HR (head opening, FEP, PFA, ETFE)

5. Maximum outlet speed: 12-120m / min (depending on the finished outer diameter)

6. Machine center height: 1000mm
